7 Vehicle interior

7-5 Seatbelts and seatbelt anchorages

Reasons for rejection

Mandatory equipment (Note 20) (Note 21)

1. A seatbelt (Note 1) of the type specified in Table 7-5-1 (first registered in NZ before 1/1/1991), Table 7-5-2 (first registered in NZ between 1/1/1991 and 31/3/2002)and Table 7-5-3 (first registered in NZ from 1/4/2002) has not been fitted for the relevant seating position (see (Note 18) for permitted specialist seatbelts), and

a) the requirements for specific motor vehicles in Table 7-5-4 are not met, or

b) the requirements for modification in Table 7-5-5 are not met.

2. A seat that can be rotated or reversed to face in different directions, for which seatbelts are not provided for all directions, has no notice easily visible by the seat occupant that indicates the direction the seat must (or must not) face when the vehicle is moving.

Condition (Note 20)
Seatbelts

3. The seatbelt assembly is not securely fixed to a seatbelt anchorage.

4. A seatbelt component (eg protective plastic cover on buckle, tongue or retractor system) is damaged so that foreign objects may enter the interior components, or that they may cause damage to the interior components, mechanisms or webbing.

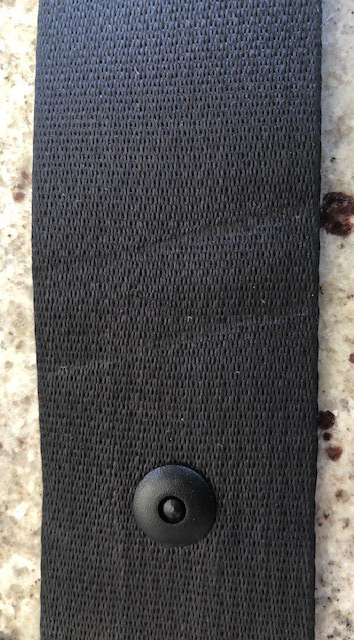

5. The seatbelt webbing (including webbing attached to the buckle) has:

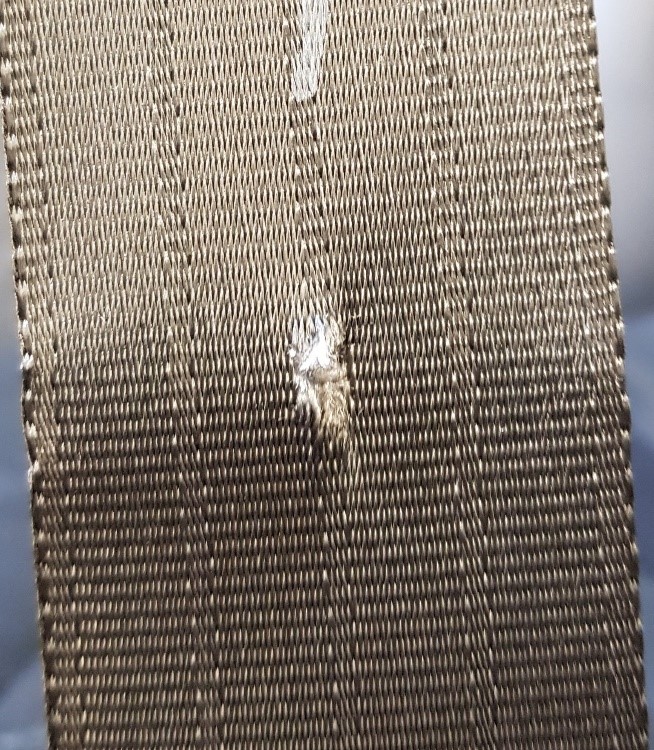

a) a cut, including a cut on the surface, or

b) a rip or tear, or

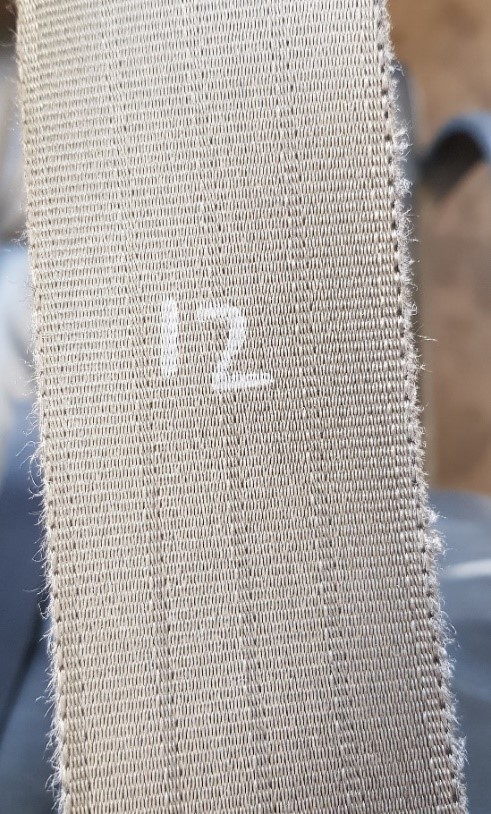

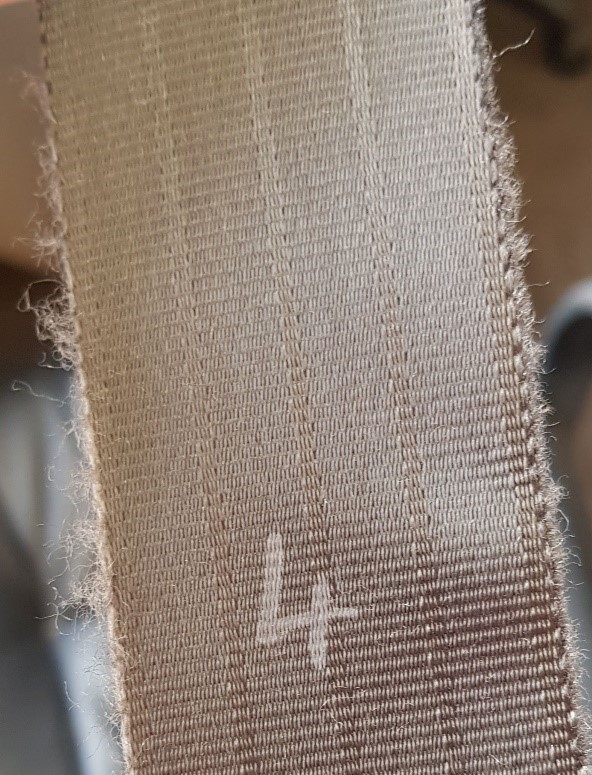

c) fraying, or

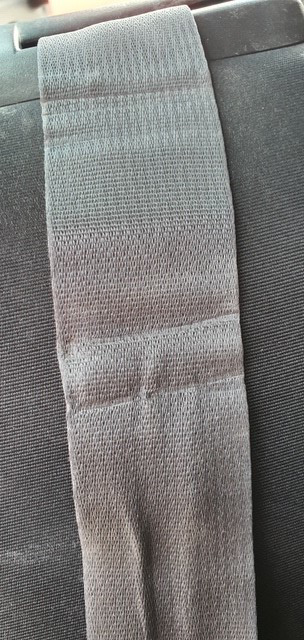

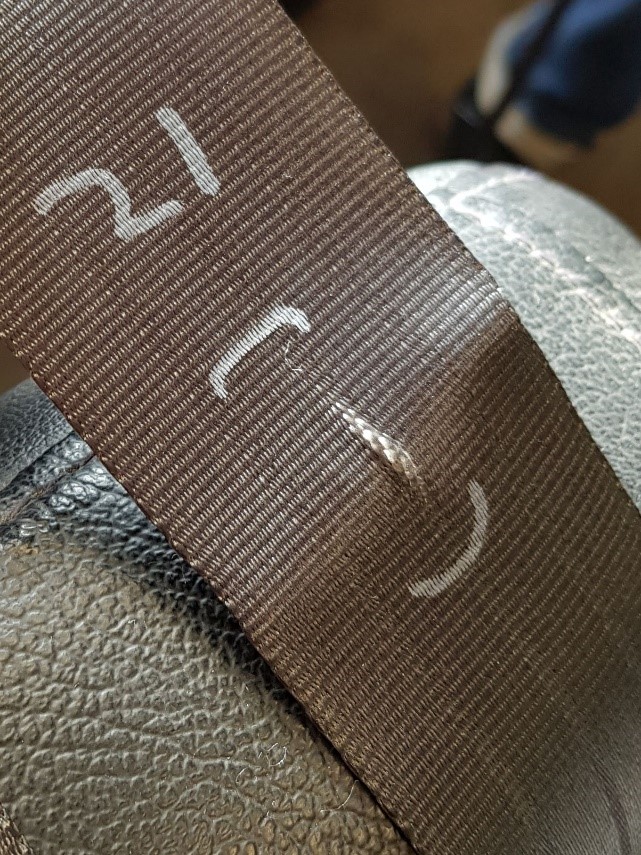

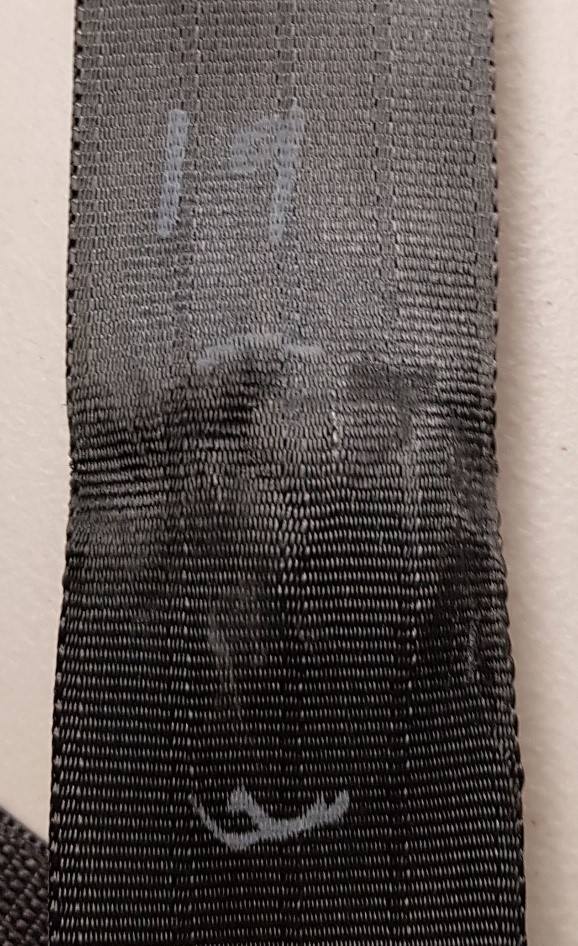

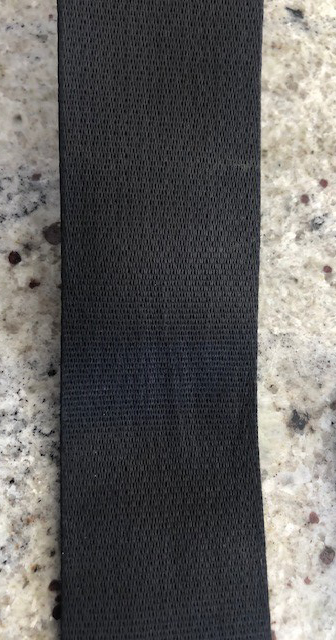

d) stretching (eg the belt has unusual web patterns or the webbing is deformed, will not lie flat, or is curled or rippled), or

e) fading so that most of the colour has been bleached, and:

i. shows signs of chalking, or a powdery residue is evident on the webbing, or

ii. it has become stiff

f) been dyed to conceal fading, or

g) contamination from grease, paint, solvents or similar products.

h) been replaced or shows other signs of repair (Note 14) and there is no evidence of approval from the seatbelt manufacturer.

Note Such approval is very unlikely.

6. The seatbelt stitching:

a) is damaged or insecure, or

b) shows signs of home repair, eg gluing, stitching by hand or home sewing machine, staples, bolts, or rivets, or

c) indicates that the 'rip stitch' system has been activated, ie the stitching is broken and a 'REPLACE BELT' label has been exposed near the lower seatbelt anchorage, or this label has been cut off.

7. A buckle and tongue:

a) are mismatched, or

b) do not lock, or

c) do not remain locked, or

d) do not release easily, or

e) are insecure when coupled.

8. A component is missing (Note 19), or is cracked, distorted, damaged or deteriorated in such a way that:

a) its strength or integrity is reduced, or

b) it may damage another component or the webbing, or

c) foreign matter may enter the interior of the mechanism, or

d) the seatbelt or a seatbelt component cannot function as intended .

9. A seatbelt stalk:

a) (wire-cable type) shows broken wires, or

b) (plastic-covered webbing type) webbing has deteriorated, or is frayed, cut or faded, or

c) (solid metal type) is corroded, cracked or buckled, or

d) is not the correct type for the vehicle or the seating position.

10. A seatbelt pretensioning system has not been replaced after activation.

Seatbelt anchorages

11. A seatbelt anchorage (Note 12):

a) is not securely fixed to the vehicle structure, or

b) is not securely fixed to the seat if the seatbelt is an integral part of the seat, or

c) is corroded, damaged or shows signs of tampering, or

d) has evidence of corrosion damage (Note 13) (Note 17) or structural damage within 150mm of a lower seatbelt anchorage mounted in a wheel arch, or within 300mm of any other seatbelt anchorage.

Performance (Note 19)

12. The seatbelt webbing of a retractor-type seatbelt does not easily pull out from the retractor.

13. The seatbelt webbing of a retractor-type seatbelt has difficulty retracting, eg is slow or intermittent, or does not fully retract.

14. A static seatbelt cannot be adjusted to fit a variety of persons.

15. The seatbelt is not of sufficient length to fit a variety of persons.

16. A seatbelt is located so that it cannot be readily fastened or released by the wearer.

17. The web and/or vehicle sensitivity of a dual-sensitive retractor type seatbelt fitted in a front seating position does not function correctly.

18. The vehicle sensitivity of a single-sensitive retractor type seatbelt fitted in a front seating position does not function correctly.

19. The web sensitivity of a dual-sensitive retractor type seatbelt fitted in a rear seating position does not function correctly.

20. The vehicle sensitivity of a single-sensitive retractor type seatbelt fitted in a rear seating position does not function correctly.

Modification

21. A modification affects a seatbelt or seatbelt anchorage – including fitting of an alternative type of seatbelt, or a modification (since 1 January 1992) that affects a seatbelt anchorage, and

a) is not excluded from the requirements for LVV specialist certification (Table 7–5–5), and

b) is missing proof of LVV specialist or accepted overseas certification, ie:

i. the vehicle is not fitted with a valid LVV certification plate, or

ii. the operator is not able to produce a valid modification declaration or authority card , or

iii. the vehicle has not been certified to an accepted overseas system as described in Technical bulletin 13 .

22. The seatbelt assembly has been removed after it was rejected for one or more reasons for rejection due to Condition or Performance (above), whether or not the seatbelt is required to be fitted.

Note 1

Seatbelt means an assembly of straps made of webbing or metal with a securing buckle, adjusting devices and attachments, including any device for absorbing energy or for retracting the webbing, that is:

a) able to be anchored to the interior of a vehicle, and

b) designed to diminish the risk of injury to its wearer in the event of a collision or abrupt deceleration of the vehicle by
limiting the mobility of the wearer’s body.

Note 2

Retractor means a device to accommodate parts, or all, of the webbing of a seatbelt.

Note 3

Single-sensitive means a seatbelt retractor that, during normal driving conditions, allows freedom of movement by the wearer of the seatbelt by means of length-adjusting components that automatically adjust the seatbelt to the wearer, and that comprises a locking mechanism activated in an emergency by deceleration of the vehicle (ie the seatbelt is vehicle sensitive).

Note 4

Dual-sensitive means a seatbelt retractor that, during normal driving conditions, allows freedom of movement by the wearer of the seatbelt by means of length-adjusting components that automatically adjust the strap to the wearer, and that is activated by two or more of the following:

a) deceleration of the vehicle, or

b) acceleration of the strap from the retractor, or

c) other means of activation.

Note 5

Seating position means a seat or part of a seat that is of a suitable size and shape for one person.

Note 6

Outer seating position means a seating position next to a side wall of a vehicle where there is no more than 500mm between the longitudinal centre of the seat and the side wall.

Note 7

Middle seating position means a seating position in a vehicle that is not an outer seating position.

Note 8

Rear seating position means a seating position in a vehicle behind the driver.

Note 9

Monocoque, in relation to a motor vehicle, means that the chassis of the vehicle is integral to the body.

Note 10

Retrofit, in relation to a seatbelt or seatbelt anchorage in a motor vehicle, means to fit a seatbelt or seatbelt anchorage in a location where a seatbelt or seatbelt anchorage has not been fitted before.

Note 11

Motorhome means a motor vehicle, other than a trailer, that is permanently equipped with features intended to make the vehicle suitable as a dwelling place, and must include at least one sleeping berth and one table, both of which may be of a design that allows them to be retracted or folded away.

  • For the purposes of this section, motorhomes and campervans are interchangeable terms.

Note 12

Seatbelt anchorage means the parts of a vehicle structure, seat structure or any other part of the vehicle to which a seatbelt assembly is attached.

Note 13

Corrosion damage is where the metal has been eaten away, which is evident by pitting. The outward signs of such corrosion damage is typically displayed by the lifting or bubbling of paint. In extreme cases the area affected by the corrosion damage will fall out and leave a hole.

Note 14

Modify means to change a vehicle from its original state by altering, substituting, adding or removing a structure, system, component or equipment, but does not include repair.

Repair means to restore a damaged or worn vehicle, its structure, systems, components or equipment to within safe tolerance of its condition when manufactured, including replacement with undamaged or new structures, systems, components or equipment.

  • Any repairs, such as webbing or retractor replacement, must be approved by the seatbelt manufacturer. Any modification, such as fitting a different type of seatbelt or a seatbelt extension, must be approved by the seatbelt or vehicle manufacturer. It is very unlikely that a repair or modification will be approved by the vehicle or seatbelt manufacturer. Where such approval is claimed, the inspector must request appropriate evidence.
Note 15

Specialist seatbelt means a seatbelt that is designed for specialist purposes, and includes a full harness seatbelt used for motorsport activities.

Note 16

Permanent structure means a non-removable structure capable of sustaining loads associated with seatbelts and seatbelt anchorages.

Note 17

Where the inspector is presented with a Nissan Terrano or Nissan Mistral vehicle of the type that is fitted with a two-layer (double skin) floor panel, the inspection procedure in Technical bulletin 2 must be followed.

Note 18

A vehicle may be fitted with seatbelts other than of type L, S, R1 or R2 only if the seatbelts are of a specialist type (eg full harness seatbelts), and:

a) the specialist seatbelts are the vehicle manufacturer’s original equipment specification, or

b) the specialist seatbelts have been fitted for a specific purpose (eg motorsport), and the operator produces a valid LVV authority card, or

c) the vehicle is scratchbuilt and the specialist seatbelts are noted on the LVV plate.

Note 19

Some class MA vehicles must have a type R2 webbing clamp seatbelt in a front outer seating position when a type R1 or R2 seatbelt in that position failed an in-service inspection because of its condition or performance. Refer to Technical bulletin 5 for requirements and exceptions.

Note 20

Where a seat has been removed, a seatbelt is not required for that position, and any remaining seatbelt or seatbelt anchorage components are not required to be inspected. Where seatbelt or seatbelt anchorage components remain fitted, and the vehicle is such that the removed seats can be readily re-fitted and used with the seatbelts, the vehicle inspector must:

  • Identify which seats were missing when the vehicle was presented for inspection, and
  • Advise the vehicle operator that the remaining seatbelt components have not been checked, and that if the missing seats are re-fitted at a later stage, it is the vehicle operators' responsibility to ensure that these seats and seatbelts are compliant prior to using them.

If the inspector chooses to inspect any remaining seatbelt components, then they should identify that to the vehicle operator. Any defects should be noted on the checksheet, but must not be failed. The same information as noted above must be recorded on the checksheet to make it clear that the responsibility lies with the vehicle operator if seats are re-fitted.

Note 21

Except as provided by Table 7-5-5, any seatbelt fitted to a seating position of a vehicle—either having been entry certified (as originally manufactured or modified) or subsequently specialist certified—must remain and be restored when damaged. It cannot be removed on the grounds that Table 7-5-1, Table 7-5-2, or Table 7-5-3 doesn’t require the seatbelt.

Key to Table 7-5-1, Table 7-5-2 and Table 7-5-3: Types of seatbelts1

No seatbelt required

L

Lap seatbelt

S

Static lap-and-diagonal seatbelt without a retractor (Note 2)

R1

Single-sensitive emergency-locking retractor (ELR) lap and diagonal seatbelt (Note 3)

R2

Multiple- (dual-) sensitive emergency-locking retractor lap-and-diagonal seatbelt (Note 4)

1 A requirement for a specified type of seatbelt may be met by the type specified or another type below it in the key.

Table 7-5-1. Vehicles first registered in New Zealand before 1 January 1991

Vehicle class

Seating position (Note 5)

First registered anywhere

1/1/1955–31/10/1979

1/11/1979–31/12/1990

MA, MB, MC
LE (without motorcycle controls)
(tare <2000 kg)

Front outer and driver’s (Note 6)

S2

R21, 3

Front middle (Note 7)

L

Rear outer (Note 8)

R2 or R1 or S

Rear middle

L

NA (tare <2000 kg)

Front outer and driver’s

S2

R21

Front middle

L

1 A four-wheel-drive vehicle may be fitted with type S or type R1 seatbelts in the front outer seating position.

2 May retain OE seatbelts, but replacement seatbelts must be of type S, R1 or R2.

3 A class MA vehicle must have a type R2 webbing clamp seatbelt in a front outer seating position, when a type R1 or R2 seatbelt in that position failed an in-service inspection because of its condition or performance.
Refer to Technical bulletin 5 for requirements and exceptions.

Key to Table 7-5-1, Table 7-5-2 and Table 7-5-3: Types of seatbelts1

No seatbelt required

L

Lap seatbelt

S

Static lap-and-diagonal seatbelt without a retractor (Note 2)

R1

Single-sensitive emergency-locking retractor (ELR) lap and diagonal seatbelt (Note 3)

R2

Multiple- (dual-) sensitive emergency-locking retractor lap-and-diagonal seatbelt (Note 4)

1 A requirement for a specified type of seatbelt may be met by the type specified or another type below it in the key.

Table 7-5-2. Vehicles first registered in New Zealand 1 January 1991 to 31 March 2002

Vehicle class

Seating position

First registered anywhere

1/1/1955–31/12/1960

1/1/1961–31/3/2002

MA, MB, MC
LE (without motorcycle controls)

Front outer and driver’s

S1, 2

R25, 6

Front middle

L

Rear outer

R2 or R1 or S1

Rear middle

L or S or R1 or R2

NA

Front outer and driver’s

S1, 2

R25

Front middle

L

MD1, MD2

Front outer and driver’s

R23, 4, 5



Front middle

L4

1 Tare weight less than 2000 kg.

2 May retain OE belts, but replacement belts must be of type S, R1 or R2.

3 Applies to MD2 only if of monocoque construction (Note 9).

4 If seatbelts are not fitted, but anchorages are fitted, must have seatbelts fitted from 1 October 2002. If anchorages are not fitted, seatbelts must be retrofitted from 1 October 2003.

5 Front type R1 seatbelts may remain fitted if they were fitted as OE and have a declaration issued by an entry certifier, or a plate affixed to the vehicle in a position approved by the Transport Agency (see Figure 7-5-2, Figure 7-5-3, Figure 7-5-4, Figure 7-5-5 and Figure 7-5-6). If missing, refer the vehicle to an entry certifier.

6 A class MA vehicle must have a type R2 webbing clamp seatbelt in a front outer seating position, when a type R1 or R2 seatbelt in that position failed an in-service inspection because of its condition or performance. Refer to Technical bulletin 5 for requirements and exceptions.

Key to Table 7-5-1, Table 7-5-2 and Table 7-5-3: Types of seatbelts1

No seatbelt required

L

Lap seatbelt

S

Static lap-and-diagonal seatbelt without a retractor (Note 2)

R1

Single-sensitive emergency-locking retractor (ELR) lap and diagonal seatbelt (Note 3)

R2

Multiple- (dual-) sensitive emergency-locking retractor lap-and-diagonal seatbelt (Note 4)

1 A requirement for a specified type of seatbelt may be met by the type specified or another type below it in the key.

Table 7-5-3. Vehicles first registered in New Zealand from 1 April 2002

Vehicle class

Seating position

Manufactured

1/1/1955–31/10/1979

1/11/1979–30/9/2003

1/10/2003–

MA, MB, MC
LE (without motorcycle controls)

Front outer and driver’s

S1, 2

R25, 6

R25, 6

Front middle

L

L

Rear outer

R2 or R1 or S1

L8 or R2 or R1

Rear middle

L or S or R1 or R2

L or S or R1 or R2

NA (excluding motorhomes manufactured from 1 October 2003, refer to Table 7-5-4)

Front outer and driver’s

S1, 2

R25

R25

Front middle

L

L

Rear outer

R2 or R1

Rear middle

L or S or R1 or R2

MD1, MD27

Front outer and driver’s

R23, 4, 5

R25

Front middle

L3, 4

L

Rear outer

L8 or R2 or R1

Rear middle

L or S or R1 or R2

1 Tare weight less than 2000 kg.

2 May retain OE belts, but replacement belts must be of type S, R1 or R2.

3 Applies to MD2 only if of monocoque construction (Note 9).

4 If seatbelts are not fitted, but anchorages are fitted, must have seatbelts fitted from 1 October 2002. If anchorages are not fitted, seatbelts must be retrofitted from 1 October 2003 (Note 10).

5 Front type R1 seatbelts may remain fitted if they were fitted as OE and have a declaration issued by an entry certifier, or a plate affixed to the vehicle in a position approved by the Transport Agency (see Figures 7-5-2 to 7-5-6). If missing, refer the vehicle to an entry certifier.

6 A class MA vehicle must have a type R2 webbing clamp seatbelt in a front outer seating position, when a type R1 or R2 seatbelt in that position failed an in-service inspection because of its condition or performance. Refer to Technical bulletin 5 for requirements and exceptions.

7MD2 vehicles must be issued with a CoF, please refer the vehicle to the nearest CoF testing station.

8 For motorhomes only.

Table 7-5-4. Requirements for specific motor vehicles

Specific vehicles

Mandatory equipment

Sideways-facing seating positions

1. A Land Rover manufactured before 1 January 1991 does not require a seatbelt to be fitted.

2. A vehicle first registered in New Zealand before 1 October 2002 must have a seatbelt of any type fitted.

3. A vehicle first registered in New Zealand on or after 1 October 2002 must have a lap seatbelt fitted.

Vehicles without a structure to fit required seatbelts

4. A vehicle manufactured before 1 October 2003 may be fitted with lap belts in any seating position if the vehicle has a permanent structure that ends less than 500mm above the top of the uncompressed seat cushion (measured from a point 150mm forward of the lowest part of the back cushion), and OE upper seatbelt anchorages are not fitted.

5. A class MA or MC vehicle manufactured before 1 October 2003 may be fitted with static lap-and-diagonal seatbelts in outer seating positions instead of R2 type seatbelts if the vehicle has a permanent structure that ends less than 500mm above the top of the uncompressed seat cushion (measured from a point 150mm forward of the lowest part of the back cushion).

6. A class MA or MC vehicle first registered outside New Zealand before 1 November 1979 that does not have B-pillars, and does not have seatbelts or seatbelt anchorages fitted for the front-outer seating positions, may be fitted with lap belts if the inspector has determined that it is not practicable to retrofit upper anchorages for static lap-and-diagonal seatbelts, and the lower anchorages have been certified to the LVV Code if retrofitted after 1 April 2002, or LVV code or ST120395 if retrofitted prior to 1 April 2002.

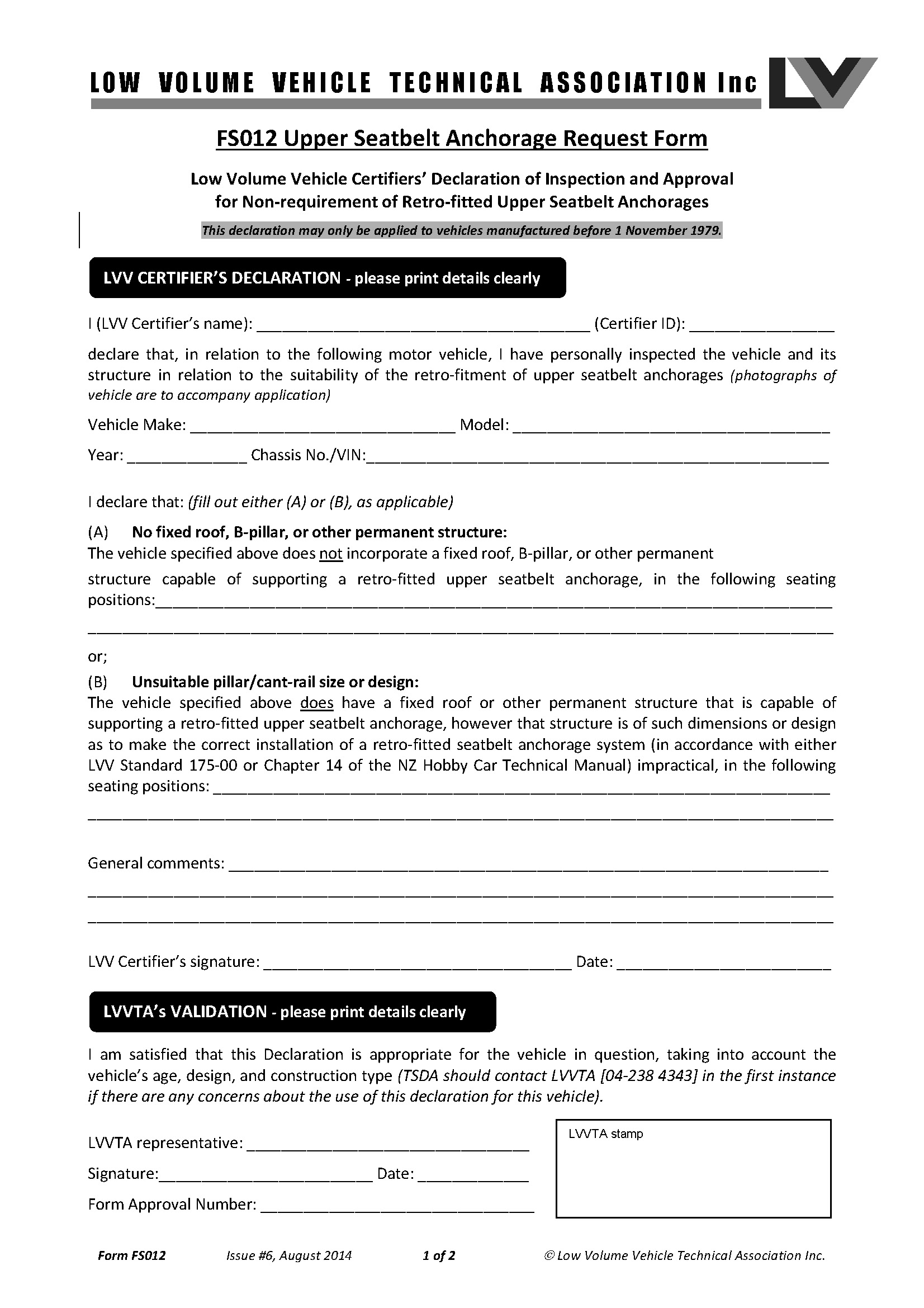

Note The vehicle inspector may accept documentation issued by the LVVTA (see Figure 7-5-5) that verifies that the vehicle does not have a suitable structure to fit required seatbelts.

Motorhomes
(Note 11)

7. Motorhomes manufactured prior to 1 October 2003 or motor vehicles converted to motorhomes prior to 1 October 2003 must have seatbelts fitted that are appropriate for the class of vehicle in which the vehicle was registered when it was registered as a motorhome.

8. Motorhomes manufactured from 1 October 2003 or motor vehicles converted to motorhomes from 1 October 2003 must be fitted with the following seatbelts and notice:

a) front seating positions: seatbelts must be fitted as specified for class MB vehicles in Table 7–5–3

b) rear seating positions: as many or more lap (type L) or lap-and-diagonal (type R1 or R2) seatbelts as there are sleeping berths minus the number of front seating positions.

c) a notice must be displayed in a prominent location that recommends, on safety grounds, that when the vehicle is travelling, passengers use seats that are fitted with seatbelts, and that advises passengers that it is compulsory to wear fitted seatbelts.

Motor vehicles that transport detained persons

9. A motor vehicle designed exclusively for transporting a person detained by the NZ Police or the Department of Corrections or a person acting on their behalf must comply with requirements for front seating positions, but does not have to comply with requirements for other seating positions.

Table 7-5-5. Modifications that do not require LVV certification

Fitting of or modification to:

LVV certification is not required provided that:

Seatbelts

  • the modification is approved by the seatbelt or vehicle manufacturer (note that such approval is unlikely, but the inspector must ask for proof if approval is claimed) (Note 14), or
  • the modification is temporary for the accommodation of a child restraint, and does not:

– affect the performance of the child restraint, or

– cause injury to a vehicle occupant, or

– cause damage to the seatbelt.

Top-tether anchorage for a child seat or harness

  • the installation has been carried out in accordance with the instructions of the seat or harness manufacturer.

Stereo equipment and speakers

If fitted to the rear parcel shelf:

  • no upper seatbelt anchorage is attached to the shelf or any shelf support bracket, and
  • in the case of a top tether point for a child seat attached to the rear shelf, the top tether point is not located within 150 mm of a modification to a rear parcel shelf, and
  • the removal of any material from the rear shelf is minimal and is unlikely to have weakened the vehicle structure to which a seatbelt anchorage is attached.

If fitted to a part of the vehicle other than the rear parcel shelf:

  • no structural material has been removed from within 300 mm of a seatbelt anchorage, and
  • any material removed is minimal and is unlikely to have weakened the vehicle structure (including a seatbelt anchorage structure).
Campervan conversions
  • The conversion was completed before 1/3/1999, or
  • The conversion was completed on or after 1/3/1999, and
  • No modifications were carried out to the vehicle roof or rear wall, and
  • No seats or seatbelt anchorages were retrofitted.

Note This means that a campervan conversion completed on or after 1/3/1999, other than a camper box fitted to an unmodified cab and chassis, always requires LVV certification.

Fitting of or modification to:

LVV certification is never required:

Retrofitted type-tested rear seatbelt anchorages

  • in-service requirements for condition and performance must be met.

Rear seatbelts fitted to class MD1, MD2 and NA vehicles before 1 March 1999

Removal of seatbelts (full or partial) where the seating position has been removed.

Replacing a type R1 or R2 seatbelt with a webclamp R1 or R2 seatbelt (eg where Technical bulletin 5 applies)

Any modification for the purposes of law enforcement or the provision of emergency services

Table 7-5-6. Specific seatbelt exemptions

Key to exemption codes

Front out-board seating positions

F1

Seatbelts may be static or single sensitive.

F2

Seatbelts may be single sensitive, that is web or vehicle sensitive.

F3

Seatbelts may be vehicle sensitive only.

F4

Seatbelts may be web sensitive only.

F5

Driver’s seatbelt may be approved lap belt.

Seating positions behind the driver

R1

All seatbelts may be approved lap belts.

R2

Forward-facing folding seats may be fitted with approved lap belts.

R3

Side-facing folding seats behind the driver are not required to have seatbelts fitted.

R4

Rear seats occupied by prisoners are not required to have seatbelts.

Note Exemptions (other than R4 and F5) are only available for vehicles first registered in New Zealand before 1 January 1991.

The following exemptions are applicable only to vehicles first registered in New Zealand before 1 January 1991:

Bedford CF: Exemption code F1: Serial numbers: 97360JZ7: 860638, 860640, 860641, 860643, 860644. 97560JZ7: 859025, 859026, 859027, 859029, 859031, 859032, 859035, 860581. 97370JZ7: 855826, 855827, 855835, 855836, 856133, 856769, 856733, 856775, 858021, 858026, 858027, 859127, 858593, 858594, 858596, 858599, 859200, 859469, 859471, 859473, 859474, 859475, 859477, 859479, 859529, 859531, 859533, 859535, 859536, 860163, 860837, 860848, 860938, 860939, 860941, 860944, 862061, 862067. 97G70JZ7: 856782, 860142, 860144, 860147, 860148, 860150, 860152, 861858, 861859, 861860, 861861, 861862, 861863, 861868, 862265, 862266, 862267, 862268, 862270, 862271, 862273, 862274, 862276. 97570JZ7: 853277, 855402, 855405, 855407, 855408, 855409, 855410, 855411, 855412, 856702, 856709, 856711, 856713, 858402, 858404, 858408, 858410, 858641, 858642, 858643, 858644, 859087, 859088, 859089, 959093, 859096, 861456, 861457, 861459, 861953, 861954. 97770JZ7: 851548. 97360JZ7: 800842, 860634, 860644, 861767. 97370JZ7: 851296, 853467, 854403, 854404, 854529, 854836, 855418, 855729, 855734, 855735, 855766, 855826, 856051, 856133, 856261, 856616, 856653, 856769, 856917, 857154, 857157, 858024, 858593, 858594, 859014, 859020, 859024, 859196, 859197, 859474, 859530, 860160, 860848, 860933, 860942, 862061, 862065, 862288, 862458, 862468, 862653, 863080, 863204, 863205, 863208, 863210, 863211, 863212, 864817. 97G70JZ7: 854097, 855062, 855063, 856783, 856790, 857907, 859349, 859350, 859358, 860141, 860142, 860144, 860148, 861858, 861860, 861867, 862265, 862276, 862271. 97560JZ7: 859035. 87570JZ7: 852305, 854309, 854310, 854314, 854319, 854463, 854544, 855774, 855780, 855783, 857463, 857714, 858406, 858412, 861460. 97670JZ7: 860145. 97770JZ7: 852373, 856250

Citroen 2CV: Exemption code R1

Chrysler Avenger: Exemption code R1: Vehicles with model prefix: BP

Daihatsu Charade: Exemption codes F1, R1: Serial numbers: XTE: G10-GMG: 830230, 830331, 830379, 830388, 830402, 830416, 830442, 830453, 830490, 830518, 830540, 830558, 830571, 830579, 830602, 830611, 830631, 830646, 830663, 830672, 830697, 830713, 830733, 830747, 830761, 830792, 830801, 830815, 823244, 823291, 823313, 823428, 831579, 831609, 831630, 831643, 831679, 831747, 831777, 831833, 831849, 831885, 831917, 831963, 831973, 832018, 832064, 854309. XG: G10-GMD: 830280, 830305, 830393, 830510, 830599, 830617, 830654, 830691, 830711, 830719, 830764, 830798, 830820. XG: G10-GKD: 830345, 830526, 830637, 830683, 830770

Daihatsu Delta: Exemption code F1: Serial numbers: VT24T-C: 90990, 91015, 91016, 91028, 91029, 91032, 91033, 91054, 91091, 91094-91099, 91100-91128, 91165-91200. V24W-C: 91129, 91131, 91133-91138. S60P: 022366

Daihatsu Rocky: Exemption codes R2, R3: Models: F75RV-BG, F75RV-MBGT and F85-VBG

Datsun 180SX: Exemption code F4: Serial numbers: KHS110: 000074, 000124, 000580, 000583, 000585, 000589, 000591, 000594, 000597, 000603, 000607, 000611, 000615, 000618, 000621, 000624, 000630, 000640, 000644, 000645, 000649, 000651, 000655, 000658, 000660, 000663, 000680, 000687, 000689, 000695, 000697, 0006999

Datsun Cherry: Exemption code F1: Series: BF10

Fiat 128: Exemption code F2: FA289 to FA336

Ford Cortina wagon: Exemption code R1: Serial numbers: CLBNVJ: 35642, 38051, 38052, 38053. CLBNVL: 30889, 31516. CLBNVT: 32987, 32998, 35480, 35488, 35498, 35502, 35503, 35504, 35505, 35507, 35508, 35511, 35514, 35524, 35526, 35532, 35533, 35545, 35581, 36548. CLBNVY: 32881, 32885, 32909, 32925, 32926, 32969

Ford Cortina sedan: Exemption code R1: CLBFVE: 28977, 29656. CLBFVJ: 37727, 37745, 37758, 37761, 37798, 37799, 37808, 37818, 37855, 37890, 37906, 37957, 37958, 37984, 38354, 38373, 38374. CLBFVL: 29738, 30749, 30845, 31404, 31429, 31448, 32172, 32313, 32688. CLBFVY: 30320, 30815, 31448, 32629, 32374, 32391, 32680, 35024, 35030. CLBFVS: 32352, 32361, 32796, 32840, 32844, 32852, 32861, 34220, 34248, 34255, 34258, 34262, 34264, 34265, 34267, 34269, 34272, 34274, 34280, 34296, 34298, 34299, 34310, 34322, 34328, 34341, 34962, 34963, 34986, 35173, 35183, 35233, 35246, 35267, 35271, 35277, 35280, 35281, 35282, 35285, 35291, 35330, 35333, 35340, 35367, 35369, 35370, 35384, 35395, 35396, 35401, 35402, 35407, 35408, 35410, 35411, 35412, 35416, 35419, 35420, 35430, 35434, 35442, 35444, 35450, 35452, 35454, 35457, 35612, 35728, 36589, 36590, 36591, 36593, 36598, 36600, 36604, 36605, 36607, 36608, 36614, 36615, 36616, 36618, 36623, 36630, 36631, 36633, 36892, 36893, 36894, 36896, 36898, 36900, 36901, 36908, 36911, 36921, 37451, 37593, 37595, 37627, 37642. CLBFVT: 35534, 35566, 36539, 36541, 36546, 36547, 36549, 36553, 36554, 36555, 36556, 35564, 36565, 36569, 36571, 36577, 36923, 36925, 36926, 36927, 36929, 36941, 36946, 36950, 36951, 36952, 36953, 36956, 36960, 36964, 36965, 36966, 36972, 36975, 36979, 36980, 36981, 36982, 36983, 3685, 36990, 37641, 37642, 37644, 37645, 37649, 37651, 37652, 37653, 37656, 37657, 37659, 37660, 37661, 37664, 37666, 37670, 37674, 37675, 37676, 37677, 37679, 37680, 37686, 37692, 37694, 37697, 37698, 3799, 37700, 37701, 37702, 37704, 37705, 37706, 37707, 37708, 37710, 37711, 37714, 37716, 37733, 37736, 37737, 37775, 37992, 37994, 37996, 37997, 37999, 38000, 38001, 38002, 38004, 38007, 38008, 38011, 38012, 38013, 38018, 38022, 38024, 38028, 38030, 38032, 38035, 38037, 38038, 38039, 39648. BABFWD: 44439, 44444, 44446, 44449, 44450

Ford Escort wagon: Exemption code R1: Serial numbers: CLADVS: 30987, 30998, 31001, 31018, 31022, 31024, 31025, 31033, 39140. CLADVT: 37320

Holden HZ utility: Exemption code F1: Serial numbers: 8N80TJZ7: 0048Z, 00049, 00053, 00059, 00065, 00904, 00907, 00913, 00918, 00923, 00929, 00931, 00934, 00941, 00949, 00950, 00951, 00953, 00954, 00956. 8N80DJZ7: 99950Z, 99956, 99959, 99966, 99969, 99977, 99981, 99984, 99985, 99987, 99991. 8N80JZ7: 00891, 00893, 00898, 00902, 00903, 00905, 00908, 00911, 00916, 00917, 00947, 00948, 00986, 00993, 00996, 01002, 01003, 01008, 01038, 01042, 01062, 01100, 01101, 01102, 01103, 01026, 01050, 01070, 01074, 01090, 01085, 01087, 01092, 01093, 01094, 01152, 99951, 99955. 8N80DJZ7: 98169Z. 8N80LJZ7: 0128Z, 01990Z, 97844Z, 97854Z, 98216Z, 99259Z, 99276Z. 8N80TJZ7: 00051Z, 00893Z, 00922Z, 00932Z, 00946Z, 00957Z, 97107Z

Holden One Ton chassis/cab: Exemption code F1: Serial numbers: 8M60JZ7: 01113, 01117, 01121, 01123Z, 01124, 01125, 01136, 01138, 01141, 01142, 01145, 01146, 01169, 98821, 98833, 98846, 98851. 8M60LJZ7: 01105Z, 01124Z, 01136Z, 01141Z, 96554Z, 98725Z, 98801Z, 98857Z, 98861Z, 99902Z

Isuzu Gemini model PF50: Exemption code F3: Serial numbers: 6709544 to 548, 6709806 to 810, 6714557 to 576, 6715252 to 261, 6715835 to 844, 6720255 to 264, 6702417 to 436, 6720675 to 681, 6725925 to 934, 6726142 to 151, 6726286 to 295, 6726536 to 545, 6731789 to 791, 6732010 to 017, 6732219 to 227, 6732425 to 432, 6732635 to 642, 6732826 to 829, 6736172 to 181

Isuzu KAG51 light commercial: Exemption code F1

Isuzu Space cab TFR17HPRRML: Exemption code R1

Isuzu TLD23: Exemption code F1

Kawasaki KAP-300 Mule 500: Exemption code F5

Land Rover all models: Exemption code R3

Mitsubishi L300 all types (includes Delica): Exemption codes F1, R1

Mitsubishi Colt 1400 light commercial: Exemption code F1

Mitsubishi Galant Sigma Estate: Exemption code R1: Any chassis number less than GQ7445 1753

NZ Police prisoner vans: Exemption code R4

Renault Alpine V6 GT D50005: Exemption code R1

Renault Alpine V6 GT Turbo D50105: Exemption code R1

Subaru 1600 GFT: Exemption code R1: Serial numbers: 002019, 002121, 002122, 002123, 002124, 002127, 002128, 002129, 002130, 002131, 002132, 002133, 002134, 002135, 002136, 002137, 002138, 002139, 002140, 002144, 002149, 002150, 002151, 002153, 002158, 002161, 002162, 002163, 002164, 002169, 002172, 002173, 002174, 002175, 002176, 002177, 002178, 002180, 002182, 002183, 002184, 002185, 002186, 002187, 002188, 002191, 002192, 002197, 002201, 002202, 002430, 002431, 002432, 002433, 002436, 002443, 002444, 002446, 002447, 002448, 002449, 002453, 002454, 002455, 002456, 002457, 002458, 002459, 002460, 002461, 002465, 002469, 002470, 002476, 002478

Subaru Domingo van: Exemption code R1: 1986 and 1987 models

Subaru 700 van: Exemption code R1: 1986 and 1987 models

Suzuki ST80: Exemption code F1: ST80 KRA: 0003, 0010, 0034, 0036, 0044, 0049, 0050, 0079, 0096

Suzuki ST90: Exemption code F1: ST90 KRA: 0097 to 0132. ST90 VRA: 0133 to 0493

Toyota Corolla mode: Exemption code F4: Serial numbers: KE 35R-KSB: up to serial number 3681

Toyota Corona estate: Exemption code R1: Serial numbers: TT132RG-TWKDS: up to unit number 781. TT132RG-TWHDS: up to unit number 381

Toyota Dyna chassis/cab: Exemption code F1: Serial numbers: RU20R-QRBT3 (petrol): up to serial number 171. RU30R-QRDHT3 (diesel): up to serial number 151

Toyota Hi-Ace van: Exemption code F1: Serial numbers: RH20RV-JRE: up to serial number 1381

Toyota Hi-Ace chassis/cab: Exemption code F1: Serial numbers: RH11R-JR3: up to serial number 391

Toyota Hilux chassis/cab: Exemption code F1: Serial numbers: RN40R-JRS3: up to serial number 401. RN41R-JR3 up to serial number 171

Toyota Hilux 850 double cab: Exemption code R1: Serial numbers: YN 65: 0002226, 0002916 to 0002925, 0002946 to 0002955, 0002993 to 0003002, 0003235 to 0003264, 0003306 to 0003335, 0003489 to 0003498, 0003733 to 0003742, 0003827 to 0003836, 0003951 to 0003960, 0003994 to 0004003, 0004075 to 0004084.

Toyota Lite Ace: Exemption code R1: Model: KM20RV-JRZ or YM20RV-MR

Figure 7-5-1. Corrosion limits around seatbelt anchorages

Figure 7-5-1. Corrosion limits around seatbelt anchorages >

See also figures for corrosion limits to structure (section 3-1), hinge and latch anchorages (section 6-1), and front or rear suspension anchorages (section 9-1).

Figure 7-5-2. Example of seatbelt declaration: Approved Certifier’s Declaration

Figure 7-5-2. Example of seatbelt declaration: Approved Certifier’s Declaration

Figure 7-5-3. Example of seatbelt declaration: TSD Agent’s Declaration

Figure 7-5-3. Example of seatbelt declaration: TSD Agent’s Declaration

Figure 7-5-4. Example of plate fitted to a vehicle that may retain single-sensitive front seatbelts

Figure 7-5-4. Example of plate fitted to a vehicle that may retain single-sensitive front seatbelts

Figure 7-5-5. FS012 Upper seatbelt anchorage request form

5

Summary of legislation

Applicable legislation
Mandatory equipment

1. A motor vehicle must be fitted with seatbelts (for seating positions) as specified in Table 7-5-1, Table 7-5-2 and Table 7-5-3, or as specified for specific vehicles in Table 7-5-4, or as specified in requirement 2 below, unless an exemption in Table 7-5-5 applies.

2. A seat that can be rotated or reversed to face in different directions: if seatbelts are not provided for all directions, a notice easily visible by the seat occupant must be placed inside the vehicle, indicating the direction the seat must face so that a seatbelt may be worn while the vehicle is moving.

Permitted equipment

3. A vehicle fitted with a seatbelt and seatbelt anchorage in a position where these are not required must meet the condition and performance requirements for seatbelts and seatbelt anchorages.

Condition
Seatbelts

4. A seatbelt must be of a design suitable for the vehicle, and must be strong, secure and in sound condition.

5. Seatbelt webbing must not be cut, stretched, frayed or faded, or have otherwise deteriorated so as to reduce the performance of the seatbelt.

6. Seatbelt webbing must be securely attached to the tongue or the adjusting buckle and to any fittings that secure a seatbelt to the seatbelt anchorages.

7. The strands of the steel cables of a seatbelt stalk must not be damaged or have deteriorated, and the seatbelt stalk must not have any other weaknesses that could reduce its performance.

8. Seatbelt buckles, retractor mechanisms or any other fittings intended to ensure the safe use of the seatbelt must not have deteriorated below safe tolerance.

Seatbelt anchorages

9. A seatbelt anchorage and its mounting location:

a) must be of a strength appropriate to both the motor vehicle and the attached seatbelt

b) must be structurally sound and free of corrosion, and

c) must not be damaged or distorted.

10. When a seatbelt or part of a seatbelt is integral to a seat, the seat and seat anchorages must be compatible in strength with the seatbelt or with that part of the seatbelt attached to the seat.

Performance

11. A seatbelt must be in good working order.

12. A seatbelt must be able to be adjusted by the wearer.

13. A seatbelt must be able to be readily fastened and released by the wearer.

Modification

14. A seatbelt must not have been modified (Note 14) since 1 January 1992, except where:

a) the modification is approved by the seatbelt or vehicle manufacturer

b) the seatbelt has been modified temporarily to accommodate a child restraint, provided the modification:

i. does not affect the performance of the child restraint, and

ii. is not likely to cause injury to a vehicle occupant, and

iii. does not cause damage to the seatbelt.

15. The fitting of an alternative type of seatbelt (Note 15) or a modification that affects a seatbelt anchorage must be inspected and certified by an LVV specialist certifier, unless the vehicle is:

a) excluded from the requirement for LVV specialist certification (Table 7-5-5), and

b) has been inspected in accordance with the requirements in this manual, including those for equipment, condition and performance.

Page amended 1 December 2016 (see amendment details).
