Vehicle Exterior
2-3 Dimensions
Note: The vehicle inspector need only inspect dimensions in detail if there is doubt about the vehicle’s compliance.
Reasons for rejection
Mandatory requirement
1. A vehicle does not meet the dimension requirements set out in Table 2-3-1 (see also Figure 2-3-1, Figure 2-3-2, and Figure 2-3-3).
Table 2-3-1. Dimension requirements
(see also Figure 2-3-1, Figure 2-3-2, and Figure 2-3-3)
Dimension | Maximum distance | Comments |
|---|---|---|
Width | 1.1m (motorcycle without sidecar) 2.55m (motorcycle with sidecar or motor tricycle) | Measurement does not include:
|
| Overall length | 12.6m (no tow coupling fitted) 11.5m (tow coupling fitted) | Measurement does not include collapsible mirrors. |
Height | 4.3m | |
Forward distance | 9.5m (no tow coupling fitted) 8.5m (tow coupling fitted) | Forward distance is measured from the centre of the rear axle to the front of the vehicle. Measurement does not include collapsible mirrors. |
Rear overhang | 4m | Rear overhang is measured from the centre of the rear axle to the rear of the vehicle. |
Front overhang | 3m | Front overhang is measured from the front edge of the driver’s seat to the front of the vehicle. |
Table 2-3-2. Modifications that do not require LVV certification
Fitting of or modification to: | LVV certification is never required: |
|---|---|
Any modification for the purposes of law enforcement or the provision of emergency services |
|

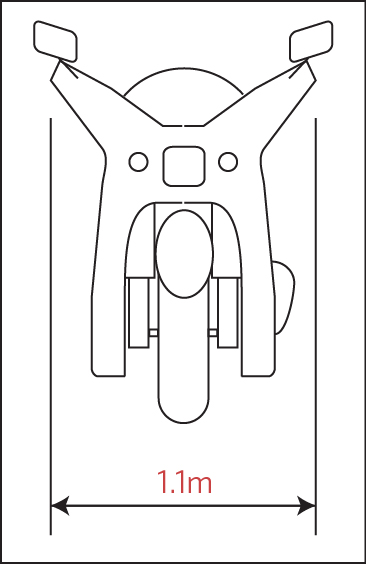

Figure 2-3-1. Maximum width for a motorcycle
(Note: Dimensions in red updated in VDAM 2016)

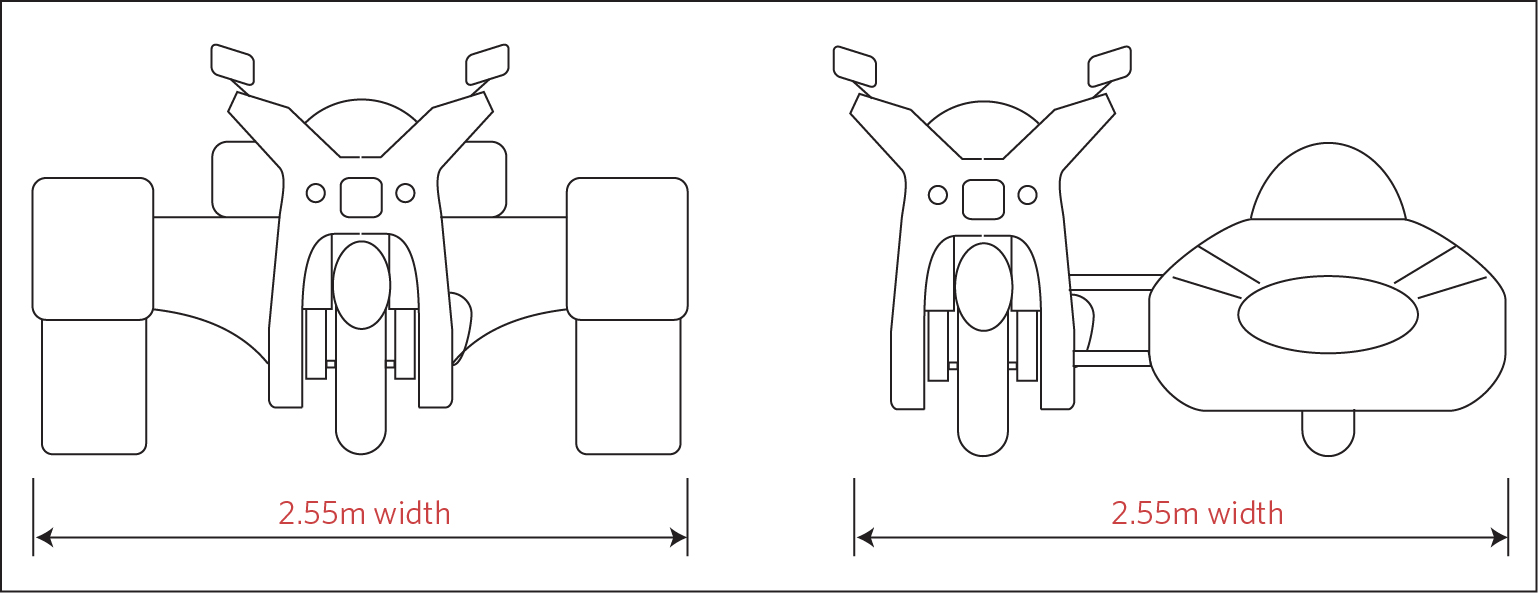

Figure 2-3-2. Maximum width for a motorcycle with sidecar or a motor tricycle
(Note: Dimensions in red updated in VDAM 2016)

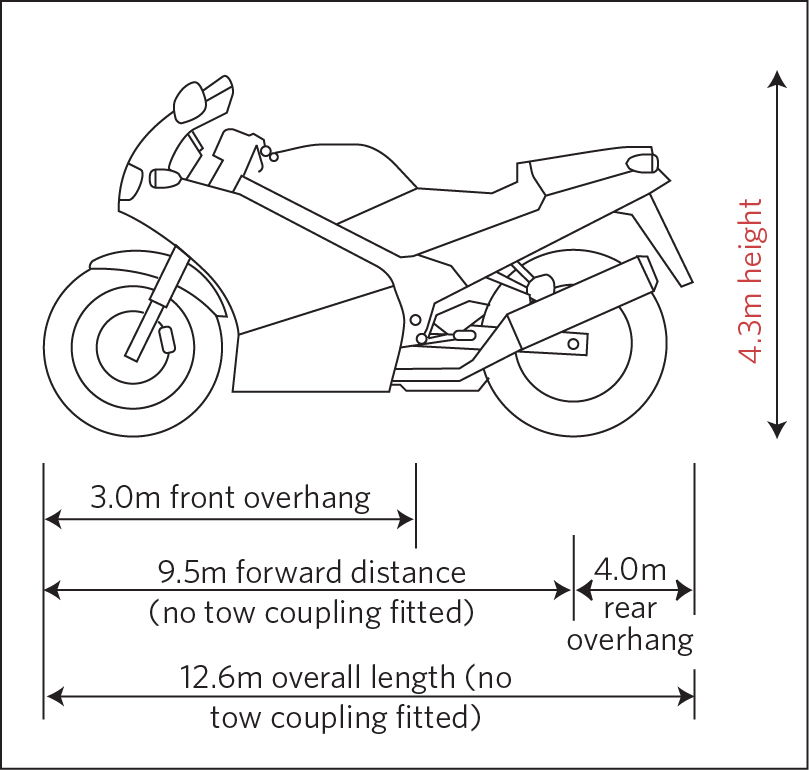

Figure 2-3-3. Other dimensions for a motorcycle, motorcycle with sidecar, or motor tricycle
(Note: Dimensions in red updated in VDAM 2016)
Summary of legislation
Applicable legislation
Mandatory requirement
1. A vehicle must meet the dimensions in Table 2-3-1.
Page amended 1 February 2017 (see amendment details).
