3 Vehicle structure

3-2 Determining frontal impact compliance


IMPORTANT: Vehicles may be exempt from the requirement to meet a frontal impact standard.
SeeTechnical bulletin 7,Technical Bulletin 8 and Technical bulletin 9 for further information.


The following information may help a vehicle inspector to apply the requirements for compliance with approved frontal impact standards.

Determine whether or not the vehicle must meet a frontal impact standard (FIS)

Refer to Figure 3-2-1 (Step 1), Figure 3-2-2 (Step 2) and Figure 3-2-3 (Step 3) to determine whether or not the vehicle needs to meet an approved frontal impact standard.

If the vehicle is not required to comply with an approved standard, continue with the inspection.

Figure 3-2-1. Step 1

321

Figure 3-2-2. Step 2

322

Figure 3-2-3. Step 3

323

If the vehicle is required to comply with an approved standard (listed in Table 3-2-1), there are several methods of determining whether or not the vehicle complies, which vary depending on the class of vehicle, the country of import and the date of manufacture.

Table 3-2-1. List of approved frontal impact standards*

UN-ECE Regulation no.

EEC/EC Directive

FMVSS

ADR

Japan

94

96/79
99/98

208

69
73

TS for occupant protection in frontal collision.

Article 18

* A vehicle that is required to comply with an approved frontal impact standard must comply with at least one of the standards listed in the table.

Check recognised manufacturer’s lists

The Transport Agency has been advised by several common vehicle manufacturers regarding compliance with approved frontal impact standards for particular class MA vehicles. These vehicles are listed by make and model and published on the Transport Agency website.

If a vehicle is shown on one of these lists as complying with an approved frontal impact standard, no further evidence is required to prove that the vehicle meets frontal impact standard requirements. However, a full statement of compliance is still required to prove compliance with other applicable standards, unless an alternative method of confirming standards compliance is provided.

If a vehicle is shown on one of these lists as not complying with an approved frontal impact standard, the vehicle cannot be certified unless a statement of compliance showing that the specific vehicle meets an approved frontal impact standard is provided.

Alternative methods for determining frontal impact compliance

If a vehicle is not shown on any of the recognised manufacturer’s lists, one of the following methods may be used to determine compliance with an approved frontal impact standard.

1 Vehicles imported from any country

If a class MA, MB or MC vehicle imported from any country (including Japan) is not shown on one of the recognised manufacturer’s lists, one of the following methods may be used to determine compliance with an approved frontal impact standard:

Description

Methods for determining FIS compliance

A class MA, MB or MC vehicle

  • A statement of compliance issued by a representative of the vehicle manufacturer, confirming compliance with an approved frontal impact standard

A class MA vehicle manufactured on or after 1 January 1996

  • An Australian Design Rules (ADR) plate affixed to the vehicle
A class MB or MC vehicle manufactured on or after 1 January 1998

A used class MA, MB or MC vehicle

  • An FMVSS certification plate, and
  • original documentation confirming that the vehicle was first registered in the US

A new or unregistered class MA, MB or MC vehicle

An FMVSS certification plate, and

  • documentation confirming that the vehicle was manufactured for the US market and would be permitted for use on public roads in the US

A used class MA, MB or MC vehicle

  • An CMVSS certification plate, and
  • original documentation confirming that the vehicle was first registered in Canada

A new or unregistered class MA, MB or MC vehicle

A CMVSS certification plate, and

  • documentation confirming that the vehicle was manufactured for the Canadian market and would be permitted for use on public roads in Canada

A class MA, MB or MC vehicle

  • A United Nations Economic Commission for Europe (UN/ECE) compliance plate, which must display the VIN and an approved frontal impact standard

A class MA, MB or MC vehicle

  • An EC Whole Vehicle Approval plate, which must display compliance with the directive ‘2001/116’ or later directive
A class MA vehicle
  • An EC Whole Vehicle Approval plate and first registered in the United Kingdom in 10/2003 or later
2 Vehicles imported from Japan

If a class MA, MB or MC vehicle that was manufactured in Japan is not shown on one of the recognised manufacturer’s lists published on the Transport Agency website, one of the following methods may be used to determine frontal impact compliance.

Manufactured in Japan

Class

Description

Methods for determining FIS compliance

MA

Car with an engine capacity of 660 cc or more

  • Evidence that the vehicle was manufactured for the domestic market on or after 1 January 1996 (Note 2)

Domestic model first registered in Japan after the end of the last year shown on the latest JAMA list (Note 1)

  • Evidence to establish a clear link to the continuation of a chassis number sequence known to be frontal impact compliant (Note 2)

Car with an engine capacity less than
660 cc (mini-sized vehicle)

  • Evidence that the vehicle was manufactured on or after 1 July 2000

New/unregistered car

  • A Japanese completion inspection certificate which demonstrates that the vehicle was manufactured in Japan on or after 1 January 1996 (Note 2)

MB

or

MC

Manufactured for the Japanese domestic market

  • Evidence that it was manufactured in Japan on or after 1 July 1999

Domestic model first registered in Japan after the end of the last year shown in the latest JAMA list (Note 1)

  • Evidence to establish a clear link to the continuation of a chassis number sequence known to be frontal impact compliant
Note 1

Japan Automobile Manufacturers Association’s (JAMA) books may be used to establish the date of manufacture of Japanese domestic vehicles manufactured after 1 January 1996. When using this method, a vehicle inspector must be able to verify this information and demonstrate the verification process.

Note 2

If a class MA vehicle manufactured in Japan for the Japanese domestic market is not listed in any of the JAMA charts or chassis numbers covering production from 1993 onwards, and was first registered in Japan after the end of the last year shown on the latest JAMA list, it can be assumed that the vehicle was manufactured after 1 January 1996.

Note 3

Any MA, MB or MC class vehicle imported from Japan that satisifes documentation requirements for general compliance and meets Euro 4, Japan 05 etc level emissions standards or better may be accepted as frontal impact compliant.

If a class MA, MB or MC vehicle that was manufactured outside Japan is not shown on one of the recognised manufacturer’s lists published on the NZTA website, one of the following methods may be used to determine frontal impact compliance.

Manufactured outside Japan

Class

Description

Methods for determining compliance

MA

Vehicle with an engine capacity less than 660cc (mini-sized vehicle)

  • Evidence that the vehicle was manufactured on or after 1 July 2000 (Note 4), and
  • Evidence that the vehicle has been through the Japanese type approval process (ie a TDN shown on the de-registration or export certificate)

Car with an engine capacity of 660cc or more manufactured for the Japanese market

  • Evidence that the vehicle was manufactured on or after 1 April 1999 (Note 4), and
  • Evidence that the vehicle has been through the Japanese type approval process (ie a TDN shown on the de-registration or export certificate)

or

  • Evidence that the vehicle was manufactured after 1 July 1999 (this may be determined by decoding the VIN to confirm the vehicle has a model year of 2000 or later), and
  • Evidence that the vehicle has been through the Japanese type approval process (ie a TDN shown on the de-registration or export certificate), and
  • The frontal impact compliance lists provided on the NZTA website do not contain any contra information

Vehicle with no TDN shown on the de-registration or export certificate.

  • Alternative evidence of compliance with an applicable standard. This may be a statement of compliance, an EC Whole Vehicle Approval plate showing directive 2001/116, or a UN/ECE decal showing compliance with R94 , or
  • A TDN exemption .

MB

or

MC

Manufactured for the Japanese domestic market.

  • Evidence that the vehicle was manufactured on or after 1 July 1999 (Note 4) (this may be determined by decoding the VIN to confirm the vehicle has a model year of 2000 or later), and
  • Evidence that the vehicle has been through the Japanese type approval process (ie a TDN shown on the de-registration or export certificate), and
  • The frontal impact compliance lists provided on the Transport Agency website do not contain any contra information.

Vehicle with no TDN shown on the de-registration or export certificate.

  • Alternative evidence of compliance with an applicable standard. This may be a statement of compliance, an EC Whole Vehicle Approval plate showing directive 2001/116, or a UN/ECE decal showing compliance with R94.
Note 4

Care must be taken when decoding the VIN. Not all manufacturers use the ISO standard exactly, so it cannot be taken for granted that manufacturers will always use the tenth character as year of manufacture, or that all manufacturers will use the same characters to denote the year. Table 3-2-3 shows decode data for some non-Japanese makes. Refer to the recognised manufacturers’ lists on the the NZTA website for further information.

Note 5

For further information regarding frontal impact compliance requirements for specific Mitsubishi models, refer to Technical bulletin 8 – Frontal impact compliance for Mitsubishi models.

Note 6

For further information regarding frontal impact compliance requirements for Toyota Cavalier vehicles, refer to Technical bulletin 9 – Frontal impact compliance for Toyota Cavaliers.

Note 7

For further information regarding exemptions from frontal impact compliance requirements for people-mover vehicles, refer to Technical bulletin 7 - Frontal impact standard exemptions.

Note 8

A list of the class MA Japanese makes and models that are known to be manufactured outside Japan for the Japanese domestic market are shown in Table 3-2-2.

Table 3-2-2. Japanese vehicles manufactured outside Japan

Ford

Note: Some Ford models are built in Japan in partnership with Mazda

Festiva (Korea)

Ka (Spain)

Mondeo (Belgium)

Probe (US)

Taurus (US)

Escape (Taiwan)

Honda

Accord CD3, CD7, CD8, CE1, CF2 (US)

Accord Inspire UA4, UA5

Civic Coupe EJ7 (US)

LaGreat RL1 (US)

Mitsubishi

Carisma (Belgium and the Netherlands)

Magna station wagon (Australia)

Diamante (Australia)

Nissan

Bluebird ‘Aussie’ (Australia)

Primera E-FHP11 (Great Britain)

AD station wagon R-MVFY10 (Mexico)

Mistral (Spain)

Toyota

Avalon (US)

Cavalier (US)

Scepter (US)

Voltz (US)

Subaru

Traviq (Germany)

Table 3-2-3. VIN decode data for some European makes

Make

VINs starting with:

Make

VINs starting with:

Audi

WAU, WUA or TRU

Hyundai

KMH

Cadillac

1G6

Jeep

1J4 or 1J8

Chrysler

1A8, 1C3, 1C4 or 1C8

Land Rover

SAL

Daewoo

KLA or KL1

Opel

W0L

Ford China

LFA

Porsche

WP0 or WP1

Ford Europe*

WF0

Saab

YS3

Ford USA

1FA or 1FM

Volkswagen

WVW or WVG

* All of the above vehicle manufacturers use the tenth character as model year, except Ford Europe, which uses the eleventh character as year of manufacture.

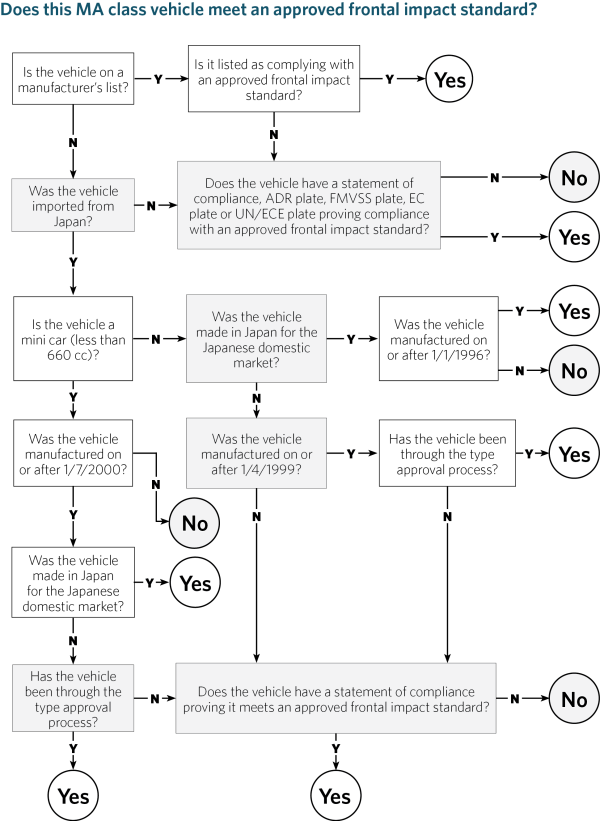

Figure 3-2-4. Flowchart for determining frontal impact compliance for class MA vehicles

324

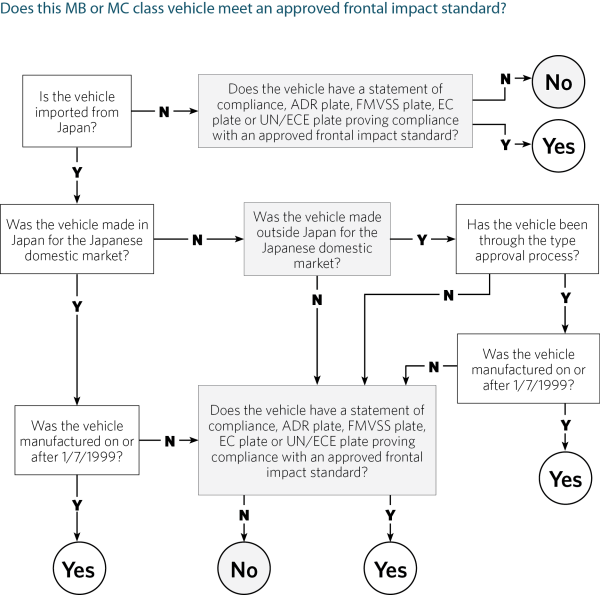

Figure 3-2-5. Flowchart for determining frontal impact compliance for class MB and MC vehicles

325

Page amended 1 November 2017 (see amendment details).
