Lighting
4-7 Rearward-facing position lamps
Reasons for rejection
Mandatory and permitted equipment
1. A trailer first registered in New Zealand before 1 January 1978 is not fitted with:
a) one single rearward-facing position lamp (Note 1) in the centre or to the right of the centre of the trailer, or
b) one pair of rearward-facing position lamps.
2. A trailer first registered in New Zealand on or after 1 January 1978:
a) that is less than 1.5m wide is not fitted with one single rearward-facing position lamp in the centre or to the right of the centre of the trailer, or with one pair of rearward-facing position lamps, or
b) that is more than 1.5m wide is not fitted with one pair of rearward-facing position lamps.
3. A trailer is fitted with more than:
a) one single lamp, or
b) two pairs of lamps.
4. A lamp is mounted at a height from the ground exceeding 1.5m (or 2.1m where fitting below 1.5m is not practicable due to the shape of the bodywork of the trailer).
5. A pair of lamps is not:
a) symmetrically mounted, or
b) mounted as far towards each side of the trailer as is practicable.
Condition
6. A lamp is insecure or, if a mandatory lamp, contains moisture in the form of large droplets, runs or puddles.
7. A lens is missing, or has a hole, crack or other damage that allows moisture or dirt to enter.
8. A reflector is damaged or has deteriorated so that light output is reduced.
Performance
9. When switched on, a mandatory lamp does not operate.
10. When switched on, a lamp emits a light that is:
a) not substantially red, or
b) not diffuse, or
c) not projected to the rear, or
d) not approximately equal in colour or intensity from the other lamp in a pair, or
e) not steady, or
f) not bright enough to be visible from 200m in normal darkness, eg due to modification, deterioration, dirt or an incorrect light source.
11. A mandatory lamp emits a light that is not visible within (Figure 4-7-1):
a) 15˚ above and below the horizontal, or
b) 45˚ inboard or 80˚ outboard
12. Where a lamp comprises an array of light sources (eg LEDs), fewer than 75% of these operate.
Note 1
Position lamp means a low-intensity lamp that is designed to indicate to road users the presence and dimensions of a vehicle, being:
a) a forward-facing position lamp (front side lamp), or
b) a rearward-facing position lamp (rear side lamp or tail lamp), or
c) a side-marker lamp, or
d) an end-outline marker lamp (including cab roof lamp).
Note 2
A permitted (ie non-mandatory) rearward-facing position lamp that does not comply with equipment, condition and performance requirements must be made to comply or be disabled so that it does not emit a light.

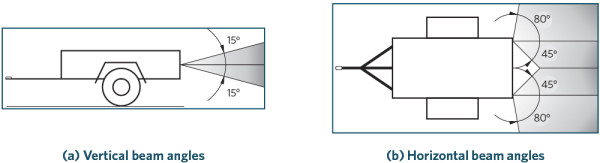

Figure 4-7-1. Rearward-facing position lamp beam angles
Summary of legislation
Applicable legislation
Mandatory and permitted equipment
1. A trailer first registered in New Zealand on or after 1 January 1978 and that is more than 1.5m wide must be fitted with one or two pairs of rearward-facing position lamps (Note 1).
2. A trailer first registered in New Zealand before 1 January 1978 or that does not exceed 1.5m in width must be fitted with:
a) one single rearward-facing position lamp in the centre or on the right side of the trailer, or
b) one or two pairs of rearward-facing position lamps.
3. A pair of lamps must be symmetrically mounted as far towards each side of the trailer as is practicable.
4. A lamp must be fitted at a height from the ground not exceeding 1.5m, or if this is not practicable due to the shape of the bodywork of the trailer, not exceeding 2.1m.
Condition
5. A rearward-facing position lamp must:
a) be in sound condition, and
b) not be obscured (if a mandatory lamp).
Performance
6. A rearward-facing position lamp must operate in a way that is appropriate for the lamp and the vehicle.
7. A lamp must emit a diffuse light that is substantially red.
8. A lamp must emit a steady light.
9. A lamp must provide sufficient light output to indicate to other road users the presence and dimensions of the trailer.
10. A lamp must emit light that is visible from a distance of 200m in normal darkness.
11. A retrofitted mandatory lamp must be visible within angles of 15˚ above and below the horizontal, and within 45˚ inboard and 80˚ outboard.
12. Each lamp in a pair must, when operated, emit a light of approximately equal intensity and colour.
13. Where a lamp comprises an array of light sources (eg LEDs), at least 75% of these must operate.
Page amended 28 April 2013 (see amendment details).
